JS8::Submode Namespace Reference

JS8 Submode namespace implementation. More...

Classes
struct	error
	Exception type thrown for invalid or unsupported submode inputs. More...

Functions
QString	name (int const submode)
	Get the name of the submode.
unsigned int	bandwidth (int const submode)
	Get the bandwidth of the submode.
Costas::Type	costas (int const submode)
	Get the Costas array type of the submode.
unsigned int	samplesPerPeriod (int const submode)
	Get the number of samples per period of the submode.
unsigned int	samplesForSymbols (int const submode)
	Get the number of samples for symbols of the submode.
unsigned int	samplesNeeded (int const submode)
	Get the number of samples needed for the submode.
unsigned int	period (int const submode)
	Get the period of the submode.
int	rxSNRThreshold (int const submode)
	Get the receive SNR threshold of the submode.
int	rxThreshold (int const submode)
	Get the receive threshold of the submode.
unsigned int	startDelayMS (int const submode)
	Get the start delay in milliseconds of the submode.
unsigned int	samplesForOneSymbol (int const submode)
	Get the number of samples for one symbol of the submode.
double	toneSpacing (int const submode)
	Get the tone spacing of the submode.
double	dataDuration (int const submode)
	Get the data duration of the submode.
double	txDuration (int const submode)
	Get the transmit duration of the submode.
int	computeCycleForDecode (int const submode, int const k)
	Compute the cycle for decode.
int	computeAltCycleForDecode (int const submode, int const k, int const offsetFrames)
	Compute the alternate cycle for decode.
double	computeRatio (int const submode, double const period)
	Compute the ratio of data duration to period.

Detailed Description

JS8 Submode namespace implementation.

Function Documentation

bandwidth()

unsigned int JS8::Submode::bandwidth

(

int const

submode

)

Get the bandwidth of the submode.

Return the nominal audio bandwidth for the given submode.

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Bandwidth in Hz.

Exceptions

JS8::Submode::error

if submode is invalid.

Here is the caller graph for this function:

computeAltCycleForDecode()

int JS8::Submode::computeAltCycleForDecode	(	int const	submode,
		int const	k,
		int const	offsetFrames )

Compute the alternate cycle for decode.

Compute an alternate decode cycle index for specialized modes.

Parameters

submode
k
offsetFrames

Returns

int

Parameters

submode	Numeric submode identifier.
a	First mode-specific parameter.
b	Second mode-specific parameter.

Returns

Alternate cycle index.

Here is the call graph for this function:

computeCycleForDecode()

int JS8::Submode::computeCycleForDecode	(	int const	submode,
		int const	k )

Compute the cycle for decode.

Compute the decode cycle index for a given candidate.

Parameters

submode
k

Returns

int

Parameters

submode	Numeric submode identifier.
param	Additional mode-specific parameter (e.g., cycle offset).

Returns

Cycle index used by the decoder.

Here is the call graph for this function:

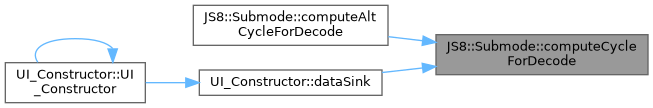

Here is the caller graph for this function:

computeRatio()

double JS8::Submode::computeRatio	(	int const	submode,
		double const	period )

Compute the ratio of data duration to period.

Compute a ratio value used by submode-specific calculations.

Parameters

submode
period

Returns

double

Parameters

submode	Numeric submode identifier.
value	Input value used in ratio computation.

Returns

Computed ratio.

Here is the call graph for this function:

costas()

Costas::Type JS8::Submode::costas

(

int const

submode

)

Get the Costas array type of the submode.

Return the Costas array type used by the submode.

Parameters

submode

Returns

Costas::Type

Parameters

submode

Numeric submode identifier.

Returns

Costas::Type describing ORIGINAL or MODIFIED arrays.

dataDuration()

double JS8::Submode::dataDuration

(

int const

submode

)

Get the data duration of the submode.

Duration (seconds) consumed by transmitting the symbol block.

Parameters

submode

Returns

double

Parameters

submode

Numeric submode identifier.

Returns

Data duration in seconds (samplesForSymbols / 12000).

Here is the caller graph for this function:

name()

QString JS8::Submode::name

(

int const

submode

)

Get the name of the submode.

Return the submode name (uppercase).

Parameters

submode

Returns

QString

Parameters

submode

Numeric submode identifier.

Returns

Uppercase submode name string.

Exceptions

JS8::Submode::error

if submode is invalid.

Here is the call graph for this function:

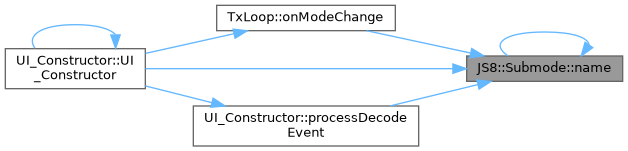

Here is the caller graph for this function:

period()

unsigned int JS8::Submode::period

(

int const

submode

)

Get the period of the submode.

Transmission period (seconds) from start-to-start for the submode.

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Period length in seconds (e.g., 30 for SLOW, 6 for JS8 40).

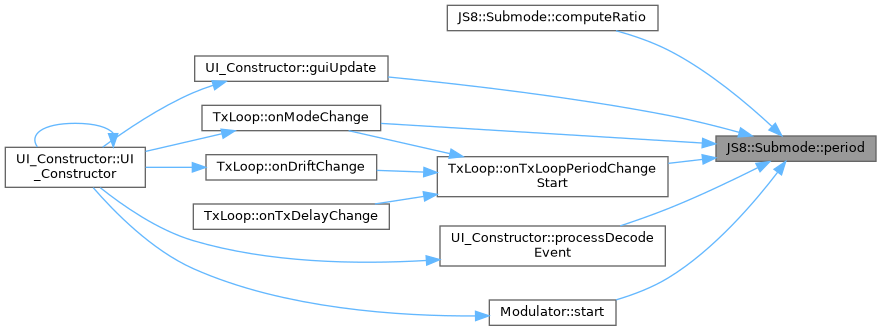

Here is the caller graph for this function:

rxSNRThreshold()

int JS8::Submode::rxSNRThreshold

(

int const

submode

)

Get the receive SNR threshold of the submode.

Receiver SNR threshold used for candidate selection.

Parameters

submode

Returns

int

Parameters

submode

Numeric submode identifier.

Returns

SNR threshold (dB integer).

Here is the caller graph for this function:

rxThreshold()

int JS8::Submode::rxThreshold

(

int const

submode

)

Get the receive threshold of the submode.

Generic receiver threshold (implementation-specific).

Parameters

submode

Returns

int

Parameters

submode

Numeric submode identifier.

Returns

Threshold value.

Here is the caller graph for this function:

samplesForOneSymbol()

unsigned int JS8::Submode::samplesForOneSymbol

(

int const

submode

)

Get the number of samples for one symbol of the submode.

Number of audio samples (at 12 kHz) per symbol.

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Samples per symbol.

Here is the caller graph for this function:

samplesForSymbols()

unsigned int JS8::Submode::samplesForSymbols

(

int const

submode

)

Get the number of samples for symbols of the submode.

Number of audio samples used to transmit all symbols in one period.

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Samples for symbols in one period.

Note

Typically JS8_NUM_SYMBOLS * samplesForOneSymbol(submode).

samplesNeeded()

unsigned int JS8::Submode::samplesNeeded

(

int const

submode

)

Get the number of samples needed for the submode.

Samples required to capture the full TX duration including start delay and padding.

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Required sample count.

samplesPerPeriod()

unsigned int JS8::Submode::samplesPerPeriod

(

int const

submode

)

Get the number of samples per period of the submode.

Samples per period at 12 kHz (includes guard/padding).

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Total samples per period.

Here is the caller graph for this function:

startDelayMS()

unsigned int JS8::Submode::startDelayMS

(

int const

submode

)

Get the start delay in milliseconds of the submode.

Milliseconds to wait after TX start before sending data.

Parameters

submode

Returns

unsigned int

Parameters

submode

Numeric submode identifier.

Returns

Start delay in milliseconds.

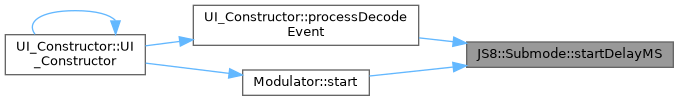

Here is the caller graph for this function:

toneSpacing()

double JS8::Submode::toneSpacing

(

int const

submode

)

Get the tone spacing of the submode.

Nominal tone spacing (Hz) for the submode.

Parameters

submode

Returns

double

Parameters

submode

Numeric submode identifier.

Returns

Tone spacing in Hz.

Here is the caller graph for this function:

txDuration()

double JS8::Submode::txDuration

(

int const

submode

)

Get the transmit duration of the submode.

Full transmission duration in seconds including start delay.

Parameters

submode

Returns

double

Parameters

submode

Numeric submode identifier.

Returns

Transmission time in seconds.
