Common definitions and constants used throughout the JS8Call-improved project. More...

#include <cstdint>
#include <mutex>

Include dependency graph for commons.h:

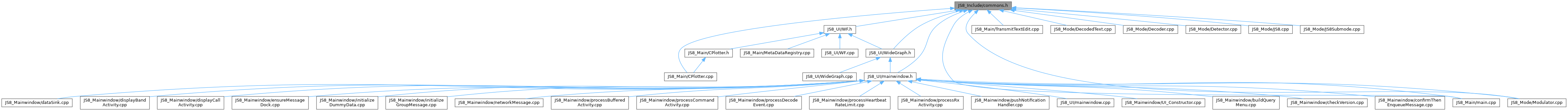

This graph shows which files directly or indirectly include this file:

Classes
struct	dec_data
	Global data structure used by the decoder. More...
struct	specData
	Global data structure used by the spectrum analyzer. More...
struct	hour_minute_second

Macros
#define	JS8_NSPS 6192
#define	JS8_NSMAX 6827
#define	JS8_NTMAX 60
#define	JS8_RX_SAMPLE_RATE 12000
#define	JS8_RX_SAMPLE_SIZE (JS8_NTMAX * JS8_RX_SAMPLE_RATE)
#define	JS8_RING_BUFFER 1
#define	JS8_DECODE_THREAD 1
#define	JS8_ALLOW_EXTENDED 1
#define	JS8_AUTO_SYNC 1
#define	JS8_NUM_SYMBOLS 79
#define	JS8_ENABLE_JS8A 1
#define	JS8_ENABLE_JS8B 1
#define	JS8_ENABLE_JS8C 1
#define	JS8_ENABLE_JS8E 1
#define	JS8_ENABLE_JS8I 1
#define	JS8A_SYMBOL_SAMPLES 1920
#define	JS8A_TX_SECONDS 15
#define	JS8A_START_DELAY_MS 500
#define	JS8B_SYMBOL_SAMPLES 1200
#define	JS8B_TX_SECONDS 10
#define	JS8B_START_DELAY_MS 200
#define	JS8C_SYMBOL_SAMPLES 600
#define	JS8C_TX_SECONDS 6
#define	JS8C_START_DELAY_MS 100
#define	JS8E_SYMBOL_SAMPLES 3840
#define	JS8E_TX_SECONDS 30
#define	JS8E_START_DELAY_MS 500
#define	JS8I_SYMBOL_SAMPLES 384
#define	JS8I_TX_SECONDS 4
#define	JS8I_START_DELAY_MS 100

Functions
int	code_time (int hour, int minute, int second)
	Encode hour, minute, and second into a single integer.
hour_minute_second	decode_time (int nutc)
	Decode an integer into hour, minute, and second components.

Variables
struct dec_data	dec_data
struct specData	specData
std::mutex	fftw_mutex

Detailed Description

Common definitions and constants used throughout the JS8Call-improved project.

Macro Definition Documentation

◆ JS8_ALLOW_EXTENDED

#define JS8_ALLOW_EXTENDED 1

Allow extended latin-1 capital charset

◆ JS8_AUTO_SYNC

#define JS8_AUTO_SYNC 1

Enable the experimental auto sync feature

◆ JS8_DECODE_THREAD

#define JS8_DECODE_THREAD 1

Use a separate thread for decode process handling

◆ JS8_NSMAX

#define JS8_NSMAX 6827

Maximum number of samples

◆ JS8_NSPS

#define JS8_NSPS 6192

Number of samples per second

◆ JS8_NTMAX

#define JS8_NTMAX 60

Maximum number of seconds in a frame

◆ JS8_NUM_SYMBOLS

#define JS8_NUM_SYMBOLS 79

Number of symbols in the JS8 alphabet

◆ JS8_RING_BUFFER

#define JS8_RING_BUFFER 1

Use a ring buffer instead of clearing the decode frames

◆ JS8_RX_SAMPLE_RATE

#define JS8_RX_SAMPLE_RATE 12000

Sample rate for RX (samples per second)

Function Documentation

◆ code_time()

int code_time	(	int	hour,
		int	minute,
		int	second )

inline

Encode hour, minute, and second into a single integer.

Parameters

hour	Hour component (0-23).
minute	Minute component (0-59).
second	Second component (0-59).

Returns: Encoded integer representing the time as HHMMSS.

This function combines the hour, minute, and second into a single integer for compact representation. The format is HHMMSS, where HH is the hour, MM is the minute, and SS is the second.

◆ decode_time()

hour_minute_second decode_time ( int nutc )

inline

Decode an integer into hour, minute, and second components.
