Core JS8 namespace types, Costas arrays and decoder event payloads. More...

#include <QObject>
#include <QSemaphore>
#include <QThread>
#include <array>
#include <functional>
#include <string>
#include <variant>

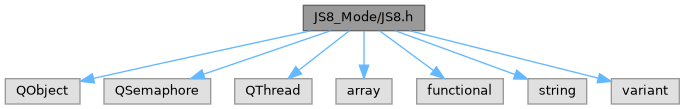

Include dependency graph for JS8.h:

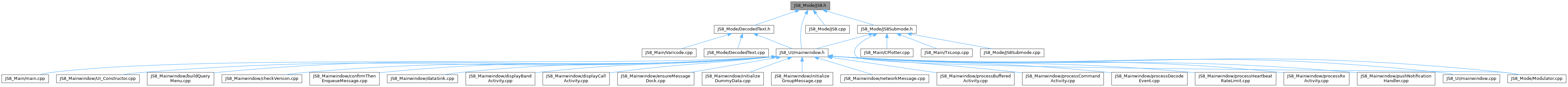

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	JS8::Event::DecodeStarted
	Emitted when the decode process starts with the configured submodes. More...
struct	JS8::Event::SyncStart
	Indicate start of a sync window. More...
struct	JS8::Event::SyncState
	Sync state update emitted during candidate evaluation. More...
struct	JS8::Event::Decoded
	Decoded frame payload emitted when a frame is successfully decoded. More...
struct	JS8::Event::DecodeFinished
class	JS8::Decoder
	High-level QObject controller that owns the decoding worker thread. More...

Typedefs
using	JS8::Costas::Array = std::array<std::array<int, 7>, 3>
using	JS8::Event::Variant
using	JS8::Event::Emitter = std::function<void(Variant const &)>

Enumerations
enum class	JS8::Costas::Type { ORIGINAL , MODIFIED }
	Costas array helpers used to map symbols to tones. More...

Functions
void	JS8::encode (int type, Costas::Array const &costas, const char message, int tones)
	Encode a NUL-terminated message into tone indices using a Costas array.

Variables
constexpr auto	JS8::Costas::array
	Return the Costas array for the requested Type.

Detailed Description

Core JS8 namespace types, Costas arrays and decoder event payloads.

Defines the JS8 namespace, Costas array helpers, event payload structures used by the decoder, and the Decoder QObject wrapper type.

Typedef Documentation

◆ Array

using JS8::Costas::Array = std::array<std::array<int, 7>, 3>

3x7 Costas array type.

◆ Emitter

using JS8::Event::Emitter = std::function<void(Variant const &)>

Function type used to receive decoder events.

◆ Variant

using JS8::Event::Variant

Initial value:

std::variant<DecodeStarted, SyncStart, SyncState, Decoded, DecodeFinished>

Variant encompassing all decoder event payloads.

Enumeration Type Documentation

◆ Type

enum class JS8::Costas::Type

strong

Costas array helpers used to map symbols to tones.

JS8 historically re-used the Costas arrays from FT8 for the "normal" mode; other JS8 modes use modified arrays. Callers request the appropriate array via Costas::array(type).

Function Documentation

◆ encode()

void JS8::encode	(	int	type,
		Costas::Array const &	costas,
		const char *	message,
		int *	tones )

Encode a NUL-terminated message into tone indices using a Costas array.

Parameters

type	Mode selector (interpreted as Costas::Type).
costas	Costas array to use for encoding.
message	NUL-terminated input message string.
tones	Output buffer to receive computed tone indices (caller-owned).

Variable Documentation

◆ array

auto JS8::Costas::array

constexpr

Initial value:

                     = [] {
    constexpr auto COSTAS =
        std::array{std::array{std::array{4, 2, 5, 6, 1, 3, 0},
                              std::array{4, 2, 5, 6, 1, 3, 0},
                              std::array{4, 2, 5, 6, 1, 3, 0}},
                   std::array{std::array{0, 6, 2, 3, 5, 4, 1},
                              std::array{1, 5, 0, 2, 3, 6, 4},
                              std::array{2, 5, 0, 6, 4, 1, 3}}};

    return [COSTAS](Type type) -> Array const & {
        return COSTAS[static_cast<std::underlying_type_t<Type>>(type)];
    };
}()

Return the Costas array for the requested Type.
