AudioDevice Class Reference

Abstract base class for audio devices exposed as a QIODevice. More...

#include <AudioDevice.h>

Inheritance diagram for AudioDevice:

Collaboration diagram for AudioDevice:

Public Types
enum	Channel { Mono , Left , Right , Both }
	Audio channel selection used by the device. More...

Public Member Functions
bool	initialize (OpenMode mode, Channel channel)
	Initialize the device for the specified open mode and channel.
bool	isSequential () const override
	Whether this device exposes a sequential data stream.
size_t	bytesPerFrame () const
	Number of bytes per audio frame for the current channel setting.
Channel	channel () const
	Get the current channel selection used by this device.

Static Public Member Functions
static char const *	toString (Channel c)
static Channel	fromString (QString const &str)
	Convert a channel label into an AudioDevice channel value.

Protected Member Functions
	AudioDevice (QObject *parent=nullptr)
void	store (char const *source, size_t numFrames, qint16 *dest)
	Copy interleaved source samples into the destination buffer.
qint16 *	load (qint16 const sample, qint16 *dest)
	Expand a sample value into the output buffer for the active channel.

Detailed Description

Abstract base class for audio devices exposed as a QIODevice.

Subclasses implement concrete audio sinks/sources. AudioDevice offers channel selection helpers, frame size calculation and convenience routines to store/load interleaved sample frames.

Member Enumeration Documentation

Channel

enum AudioDevice::Channel

Audio channel selection used by the device.

These values are mapped to UI combobox indexes elsewhere; do not reorder or renumber them without updating the UI mappings.

Member Function Documentation

bytesPerFrame()

size_t AudioDevice::bytesPerFrame ( ) const

inline

Number of bytes per audio frame for the current channel setting.

For mono devices this equals the sample size; for stereo it is double.

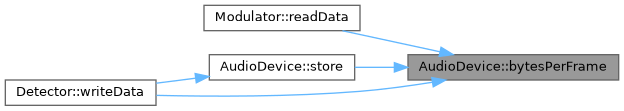

Here is the caller graph for this function:

channel()

Channel AudioDevice::channel ( ) const

inline

Get the current channel selection used by this device.

The channel determines how interleaved frames are interpreted when storing and loading samples (Mono, Left, Right, or Both).

Returns

The active Channel value used for store/load operations.

Here is the caller graph for this function:

fromString()

Channel AudioDevice::fromString ( QString const & str )

inlinestatic

Convert a channel label into an AudioDevice channel value.

Parameters

str	Channel name to parse.

Returns

Matching Channel enum value.

initialize()

bool AudioDevice::initialize	(	OpenMode	mode,
		Channel	channel )

Initialize the device for the specified open mode and channel.

Parameters

mode	QIODevice open mode (ReadOnly/WriteOnly/etc).
channel	Channel selection to use.

Returns

true on successful initialization.

Here is the call graph for this function:

Here is the caller graph for this function:

isSequential()

bool AudioDevice::isSequential ( ) const

inlineoverride

Whether this device exposes a sequential data stream.

Returns true to indicate the device behaves as a sequential QIODevice (no random access). Consumers should treat the device as a stream of sample data and avoid relying on seeking.

Returns

true when the device is sequential.

load()

qint16 * AudioDevice::load ( qint16 const sample, qint16 * dest )

inlineprotected

Expand a sample value into the output buffer for the active channel.

Parameters

sample	Input sample value.
dest	Output buffer to fill.

Returns

Updated buffer pointer.

Here is the caller graph for this function:

store()

void AudioDevice::store ( char const * source, size_t numFrames, qint16 * dest )

inlineprotected

Copy interleaved source samples into the destination buffer.

Parameters

source	Source data buffer.
numFrames	Number of frames to copy.
dest	Destination sample buffer.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• JS8_Audio/AudioDevice.h
• JS8_Audio/AudioDevice.cpp
